Generalized Cook's membrane problem

Results for all elements

Results for all elements

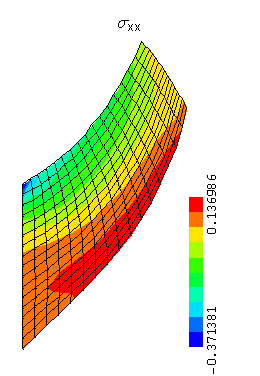

Plane strain problems

Material: HOK q=1/16 E=1.0 n=0.3

Material: HYP q=100/16 E=250. n=0.3

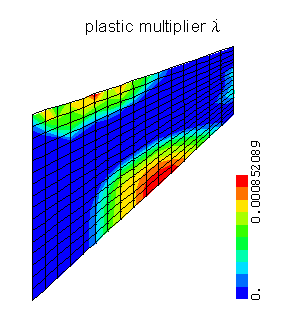

Material: EPE, EPS

q=1650/16

E=210000

n=0.3

s_yield=240

Plane stress problems

Material : HOK, HYP

The data is the same as for plane strain problems.

Material: EPE, EPS

q=1450/16

E=210000

n=0.3

s_yield=240

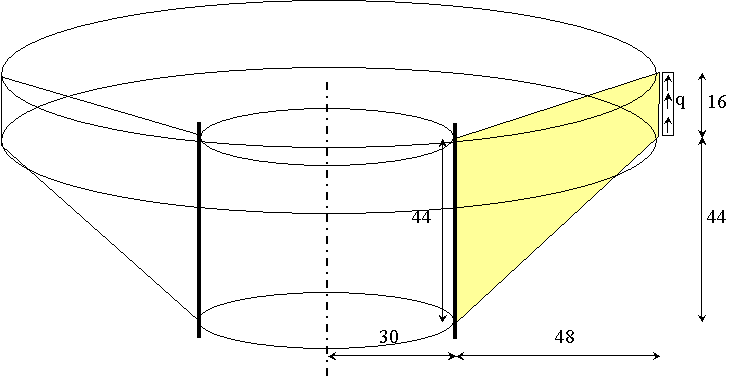

Axisymmetric problems

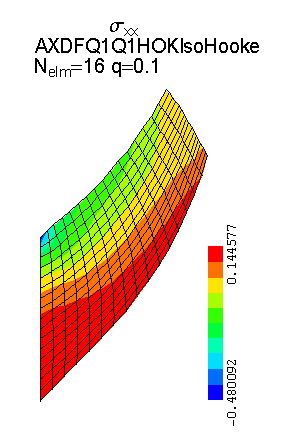

Material: HOK q=0.1/16 E=1.0 n=0.3

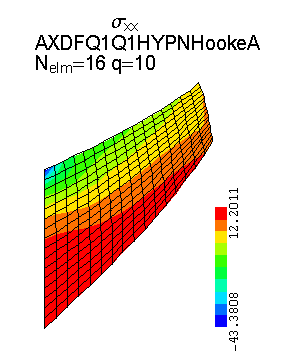

Material: HYP q=10/16 E=250. n=0.3

Material: EPE, EPS

q=140/16

E=210000

n=0.3

s_yield=240

3D solid problems

Material: HOK q=8/(8×16) E=1.0 n=0.3

Material: HYP q=800/(8×16) E=250. n=0.3

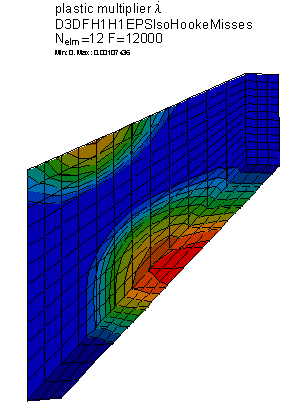

Material: EPE, EPS

q=12000/(8×16)

E=210000 n=0.3 s_yield=240
